# Bandpass Filter Matlab

Band Pass Filters are used to filter or isolate certain frequencies that lie in a particular range. These filters find their use in applications like audio amplifiers or circuits used in loudspeakers (crossover filters) or tone controls used in pre-amplifiers. In these applications, it is required to pass only a specific range of frequencies which don’t start at DC (0HZ) or they end at a higher frequency point but lie within a specific range, which can be either wide or narrow.

## Syntax:

`F = bandpass (s, wp)`

`F = bandpass (s, fp, Fx)`

## Description:

• F = bandpass(s, wp) is used to filter the signal ‘s’ with passband frequency range provided by the 2-element vector ‘wp’. If input ‘s’ is a matrix, the bandpass function will filter each column of ‘s’ independently
• F = bandpass (s, fp, Fx) is used to specify that the signal ‘s’ is sampled at a rate ‘Fx’ HZ. The 2-element vector ‘fp’ gives the passband frequency

## Examples of Bandpass Filter Matlab

Let us now understand the code of ‘Bandpass filter’ in MATLAB with the help of various examples:

## Example 1:

In this example, we will create a sine signal which is sampled at 10000Hz for 1 second and will pass it through a Bandpass filter.

Below are the steps to be followed:

• Define the sampling rate.
• Define the tones for the signal.
• Keep low frequency and high frequency tone at a level of three times the intermediate tone.
• Pass the above signal through the bandpass filter by setting the allowed frequencies.

## Code:

``````Fx = 1e4
T = 0:1/Fx:1[Defining the sampling rate]

s = [3 1 3]*sin(pi*[50 100 300]'.*T) + randn(size(T))/20;[Creating the signal with 3 tones, 50 Hz, 100 Hz and 300 Hz]

bandpass(s, [100 200], Fx)[Passing the input signal to bandpass filter and setting the allowed frequency range as 100 to 200] [Bandpass filter will allow frequencies of 100 & 200 Hz. In the output, we will get the original & filtered signals along with their spectra]``````

## Input:

``````Fx = 1e4
T = 0:1/Fx:1
s = [3 1 3]*sin(pi*[50 100 300]'.*T) + randn(size(T))/20;
bandpass(s, [100 200], Fx)``````

## Output:

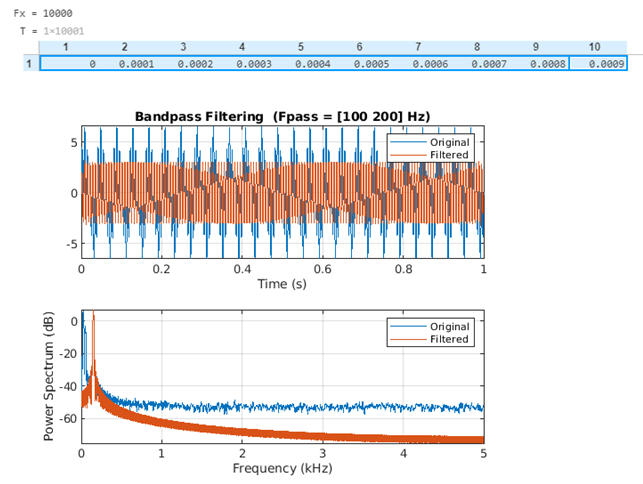

As we can see in the output, we have obtained the original & filtered signals along with their spectra. The Bandpass filter has removed the frequencies below the low pass frequency and frequencies above the high pass frequency.

## Example 2:

In this example, we will create a cos signal which is sampled at 10000Hz for 1 second and will pass it through a Bandpass filter.

Below are the steps to be followed:

• Define the sampling rate.
• Define the tones for the signal.
• Keep low frequency and high-frequency tone at a level of two times the intermediate tone.
• Pass the above signal through the bandpass filter by setting the allowed frequencies.

## Code:

``````Fx = 1e4
T = 0:1/Fx:1[Defining the sampling rate]

s = [2 1 2]*cos(pi*[150 200 300]'.*T) + randn(size(T))/20;[Creating the cos signal with 3 tones, 150 Hz, 200 Hz and 300 Hz]

bandpass(s, [100 200], Fx)[Passing the input signal to bandpass filter and setting the allowed frequency range as 100 to 200] [Bandpass filter will allow frequencies of 100 & 200 Hz. In the output, we will get the original & filtered signals along with their spectra]``````

## Input:

``````Fx = 1e4
T = 0:1/Fx:1
s = [2 1 2]*cos(pi*[150 200 300]'.*T) + randn(size(T))/20;
bandpass(s, [100 200], Fx)``````

## Output:

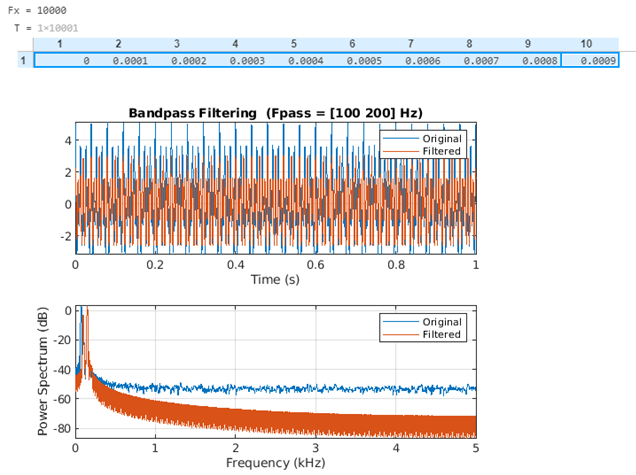

As we can see in the output, we have obtained the original & filtered signals for our input cos signal along with their spectra. The Bandpass filter has removed the frequencies below the low pass frequency and frequencies above the high pass frequency.

## Example 3:

In the above 2 examples, we used a three-channel signal, in this example, we will use a 2-channel signal and will pass it through a Bandpass filter.

Below are the steps to be followed:

• Define the sampling rate.
• Define the tones for the signal.
• Keep high frequency twice the low frequency.
• Pass the above signal through the bandpass filter by setting the allowed frequencies.

## Code:

``````Fx = 1e4
T = 0:1/Fx:1[Defining the sampling rate]

s = [2 1].*cos(2*pi*(0:64)'./[32 64])[Creating the 2-channel cos signal]

bandpass(s, [100 200], Fx)[Passing the input signal to bandpass filter and setting the allowed frequency range as 100 to 200] [Bandpass filter will allow frequencies of 100 & 200 Hz. In the output, we will get the original & filtered signals along with their spectra]``````

## Input:

``````Fx = 1e4
T = 0:1/Fx:1
s = [2 1].*cos(2*pi*(0:64)'./[32 64])
bandpass(s, [100 200], Fx)``````

## Output:

As we can see in the output, we have obtained the original & filtered signals for our input cos signal along with their spectra. The Bandpass filter has removed the frequencies below the low pass frequency and frequencies above the high pass frequency.
