# Matlab Plot Colors

MATLAB provides us with plenty of functionalities, useful in various computational problems. Apart from its computational capabilities, MATLAB is also a great tool for visualization. It provides us with the ability to create a wide variety of plots. In this article, we will focus on how to obtain plots of the required colors.

As we are aware, we can have multiple functions plotted in a single figure; colors help us to differentiate between these functions. In MATLAB we use pre-defined color codes to get plots of desired colors.

## TABLE for Color Codes

Below is the color table code as follows:

## Examples to Implement Matlab Plot Colors

Let us start by taking the example of 2 functions created in the same plot.

## Syntax:

Defining our functions:

``````X = linspace(-2*pi,2*pi)
a = sin (X)
b = cos (X)``````
• [Defining 100 equally distant points]
• [Defining our first function: sin function]
• [Defining our second function: cos function]

Note: For this example, we will be creating our functions in the following colors: 1st function in Green and 2nd function in Blue. Example: plot(X, a, ‘g’, X, b, ‘b’)[Plotting our functions]

Observe in the code that we have passed pre-defined color codes as arguments (Please refer to the table at the end of the article for pre-defined color codes)

## Input:

``````X = linspace(-2*pi,2*pi)
a = sin (X)
b = cos (X)
figure
plot(X, a, 'g', X, b, 'b')``````

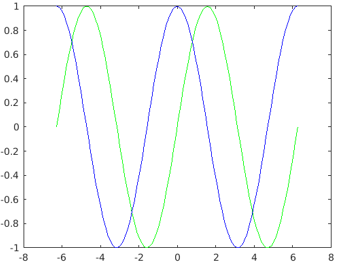

## Output:

Explanation: Observe in the output that we have obtained our functions in the colors as expected.

## Example 2 – 3 functions

Let us next take an example of 3 functions created in the same plot.

## Syntax:

Defining our functions:

``````X = linspace(-2*pi,2*pi)
a = sin (X)
b = cos (X)
c = X``````
• [Defining 100 equally distant points]
• [Defining our first function: sin function]
• [Defining our second function: cos function]
• [Defining our third function: a straight line]

Note: For this example, we will be creating our functions in following colors: 1st function in Green, 2nd function in Blue and 3rd function in Yellow] example:  plot(X, a, ‘g’, X, b, ‘b’, X, c, ‘y’)[Plotting our functions]

Observe in the code that we have passed pre-defined color codes as arguments (Please refer to the table at the end of the article for pre-defined color codes)

## Code:

``````X = linspace(-2*pi,2*pi);
a = sin (X);
b = cos (X);
c = X
figure
plot(X, a, 'g', X, b, 'b', X, c, 'y')``````

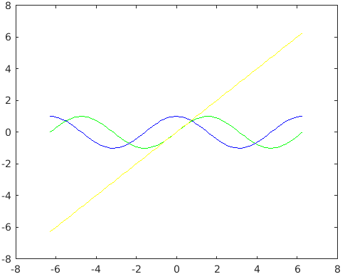

## Output:

Explanation: As we can see in our output, we have got our functions in the colors as passed by us in the input.

## How to Set the Color of Bar Plots?

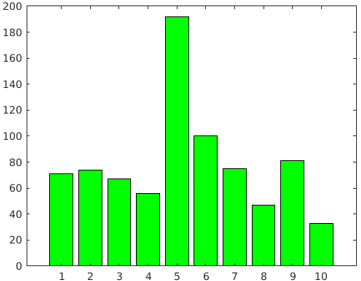

For this example, we will create a bar plot with bars of green color.

## Syntax:

Let us first define an array to create a Bar plot:

``[71 746756 192 1007547 8133 ] bar (X, ‘g’)``
• [Defining the array]
• [Plotting our bar plot]

Observe in the code that we have passed pre-defined color code for green as an argument (Please refer to the table at the end of the article for pre-defined color codes)

## Code:

``X = [71 74 67 56 192 100 75 47 81 33 ] bar (X, 'g'``

## How to Set Color of Scatter Plots?

For this example, we will scatter plot of red color

## Syntax:

``````a = linspace(0, 2*pi,100)
b = cos (a) + rand (1, 100)
scatter (a, b, ‘r’)``````
• [Defining 100 equally distant points]
• [Defining our cos function]
• [Plotting our scatter plot]

Observe in the code that we have passed pre-defined color code for red as an argument (Please refer to the table at the end of the article for pre-defined color codes)

## Code:

``````a = linspace(0, 2*pi,100);
b = cos(a) + rand(1,100);
scatter(a, b, 'r')``````

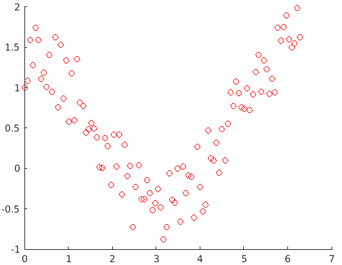

## Output:

Observe in the output that we have obtained a scatter plot of red color, as passed by us in the input argument.
