Signal Processing in MATLAB

MATLAB is a programming environment that is interactive and is used in scientific computing. It is extensively used in a lot of technical fields where problem-solving, data analysis, algorithm development, and experimentation is required. The software which is discipline-specific is extensively written using MATLAB. In this article, we will study how signal processing is done in MATLAB. Mostly System objects are used in MATLAB to perform signal processing. We will see that in every processing loop, signals will be read and processed block to block or frame to frame. Also, the size of these frames can be controlled by us.

Before we see how signal processing is performed in MATLAB, let us quickly refresh our understanding of signal processing. Signal processing is used extensively to extract critical information present in detectors. We require the amplitude and timing of our output pulse to detect and measure the radiation. Signal processing techniques are required to extract all this information from low-amplitude and narrow-width pulses of the detector.

How Signal Processing is Performed in MATLAB?

Let us now learn how signal processing is performed in MATLAB.

Signal processing includes 3 main steps:

1. Initializing the streaming components

2. Creating the filter

3. Streaming and processing the signal

Let us understand all these steps one by one:

1. Initializing the streaming components

Code:

F = 3000;
[Setting the sample rate] Object1 = dsp.SineWave('SamplesPerFrame',1024,...
'SampleRate',F,'Frequency', 200);
[Creating ‘sinewave’ object for generating the sine wave and setting the frequency to 200] SA = dsp.SpectrumAnalyzer('SampleRate',F,'NumInputPorts',2,...
'ChannelNames',{'Input Wave'});
[Creating spectrum analyser to visualize the wave and setting the required properties]

Explanation: step 1 will create a sine wave of frequency 200Hz, as passed by us in the argument

2. Creating the filter

Here we will create a Notch peak filter

Code:

W = 1500;
[Setting the centre frequency of the filter] Q = 35;
[Setting the Q factor to narrow the bandwidth of notch in filter] B = W/Q;
[Setting the bandwidth] NF = dsp.NotchPeakFilter('Bandwidth',B,...
'CenterFrequency',W, 'SampleRate',F);
fvtool(NF);
[Creating the Notch filter NF and setting the required properties]

Explanation: Step2 will result in creating a filter (notch peak), which we will use in the next step to filter our input signal.

3. Streaming and processing the signal

Code:

FV = [100 400 650 1100];
[Initializing frequencies for notch of the filter] Index1 = 1;
[Setting the index of ‘for loop’] VE = FV(Index1);
[The value of notch will be set to 100,400,650,and 1100 based on the change in value of VE in the for loop] for Iteration = 1: 2000
[Creating the for loop which will repeat for 2000 iterations]

Examples to Implement Signal Processing Matlab

Below are some examples:

Example 1

Code:

Input = Object1();
if (mod(Iteration,350)==0)
if Index1< 4
Index1 = Index1+1;
else
Index1 = 1;
end
VE = FV(Index1);
end
NF.CenterFrequency = VE;
NF.Bandwidth = NF.CenterFrequency/     Q;
Output = NF(Input);
SA(Input,Output);
end
fvtool(NF)

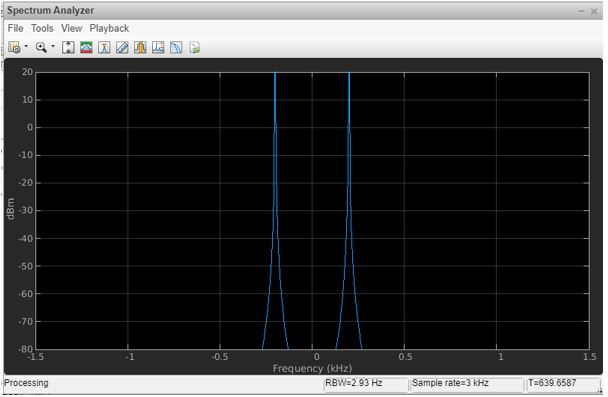

Output:

Example 2:

 Let us take another example where we will create a noise signal from a sine wave.

Code:

Fre1 = 2000;
[Initializing the first frequency] Fre2 = 2500;
[Initializing the second frequency] F = 10000;
[Initializing the sample rate] Object1 = dsp.SineWave('Frequency',[Fre1, Fre2],'SampleRate',F,...
'SamplesPerFrame',1026);
SA = dsp.SpectrumAnalyzer('SampleRate',F,...
'ShowLegend', false,'YLimits',[-100 40],...
'Title',‘Demo Noisy signal',...
'ChannelNames', {'Noisy Signal’});
[Creating spectrum analyser, to visualize the wave and setting the required properties] for Iter = 1:200
input = sum(Object1(),2);
NI = input + (10^-4)*randn(1026,1);
[Creating the noisy signal] SA (NI)
end

Output:

Example 3:

Now we can use a ‘multirate’ filter to tackle the noise created. For using a ‘multirate’ filter, we will first create a system object “DSP.FIRDecimator”.Next, we will need to create a new ‘System Analyser’ to view the filtered output. This is how our code will look like now:

Code:

x = designMultirateFIR(1,2,12);
[Initializing the multirate filter] FD = dsp.FIRDecimator(3, x);
[Initializing the object FIRDecimator] fvtool(FD);
Fre1 = 2000;
[Initializing the first frequency] Fre2 = 2500;
[Initializing the second frequency] F = 10000;
[Initializing the sample rate] Object1 = dsp.SineWave('Frequency',[Fre1, Fre2],'SampleRate',F,...
'SamplesPerFrame',1026);
SA = dsp.SpectrumAnalyzer('SampleRate',F,...
'ShowLegend', false,'YLimits',[-100 40],...
'Title', ‘Demo Noisy signal',...
'ChannelNames', {'Noisy Signal’});
[Creating spectrum analyser to visualize the wave and setting the required properties] SA2 = dsp.SpectrumAnalyzer('SampleRate', F / 2,...
'ShowLegend', false,'YLimits',[-100 40],...
'Title','Filteredsignal’,...
'ChannelNames', {'Filtered signal’});
[Creating another spectrum analyser to visualize the filtered wave and setting the required properties] for Iter = 1:200
inp = sum(Object1(),2);
NI = inp + (10^-4)*randn(1026,1);
[Creating the noisy signal] FO = FIRDecim(NI);
[Using the ‘multirate’ filter] SA (NI)
SA2 (FO)
end

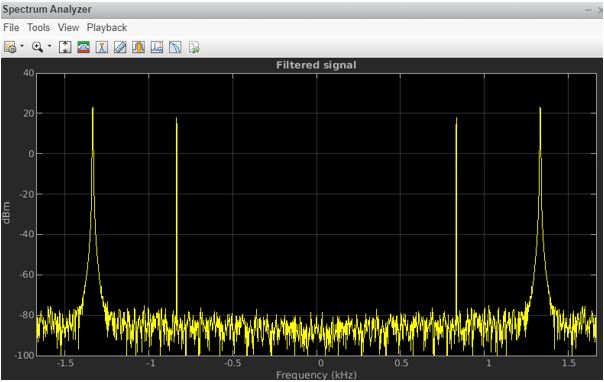

Output:
